Rodin add-on for Omniverse

Introduction

The Rodin add-on for Omniverse brings image-based Rodin generation into Omniverse. You can configure a generation, use a selected scene object with ControlNet, and import completed assets through a workflow connected to the Rodin web interface.

Overview

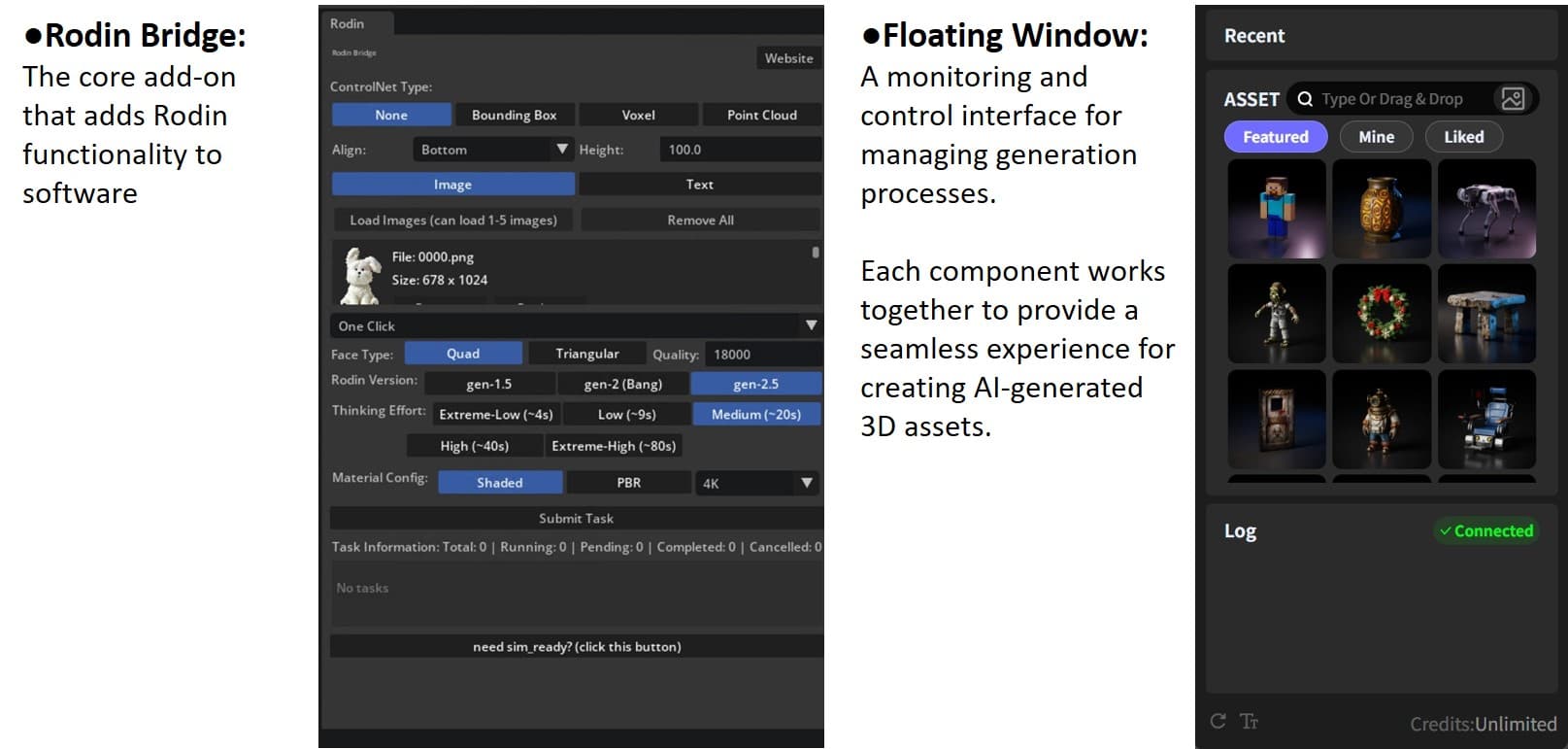

The Rodin Bridge panel connects your Omniverse workflow to Rodin generation controls.

Installation

Verified versions

No complete Omniverse version matrix has been provided. Use the supplied extension archive with the Omniverse version for which it was distributed.

Installation steps

1. Locate the supplied deemos.rodin.tool.zip archive.
2. In Omniverse, select Developer > Extensions.
3. Open the Extensions menu and select Import Extension.
4. Choose deemos.rodin.tool.zip.
5. After Rodin appears in the Extensions list, enable it.
6. Select Rodin > Launch Rodin from the menu bar to open Rodin Bridge.

Basic usage

Some steps take place in Omniverse and others continue in the Rodin web interface.

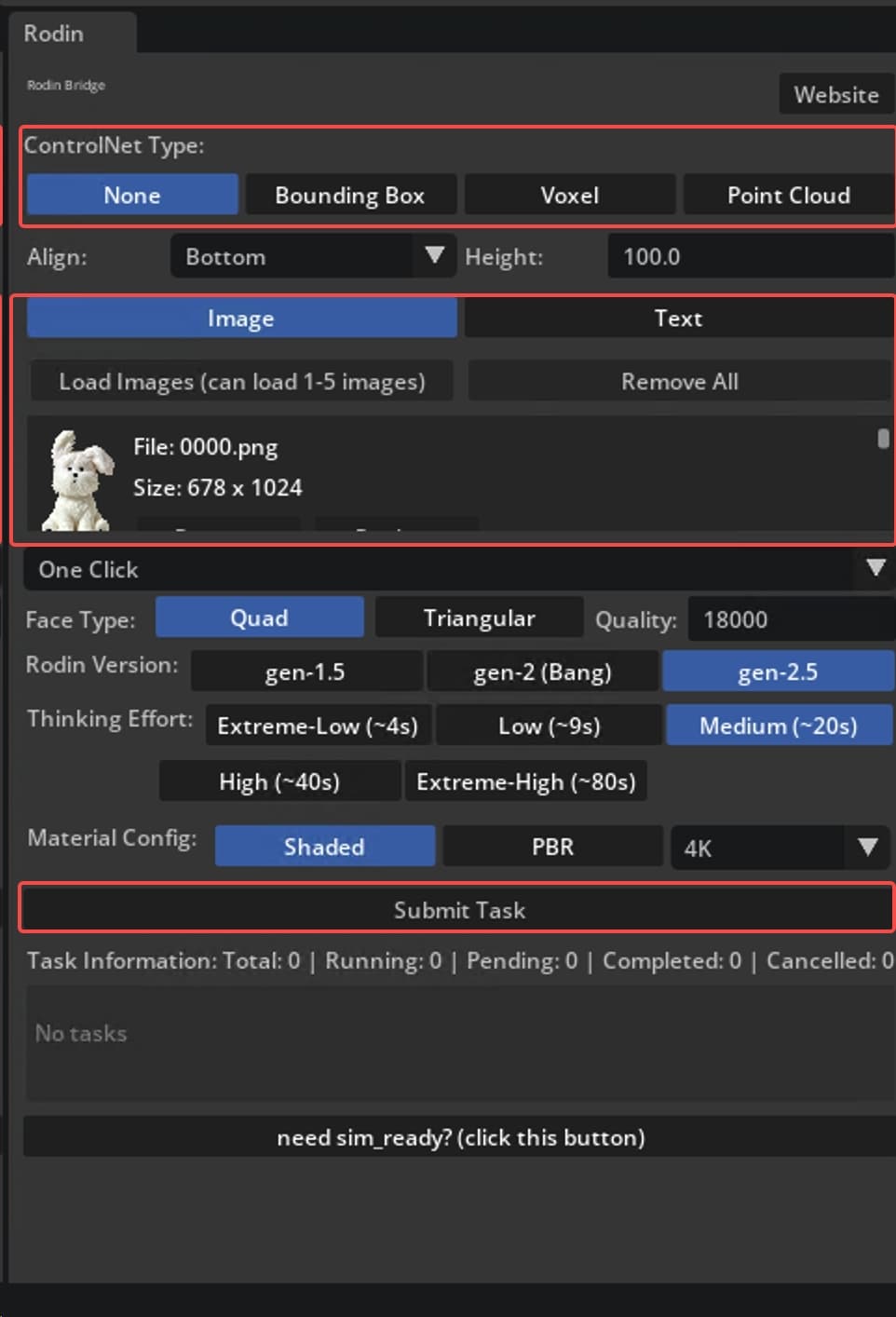

Single-image generation

1. Use Remove and Load Image to replace the default image.
2. Set ControlNet to None and select One Click for an automated workflow. Adjust the remaining generation settings as needed.
3. Select Submit to start generation.

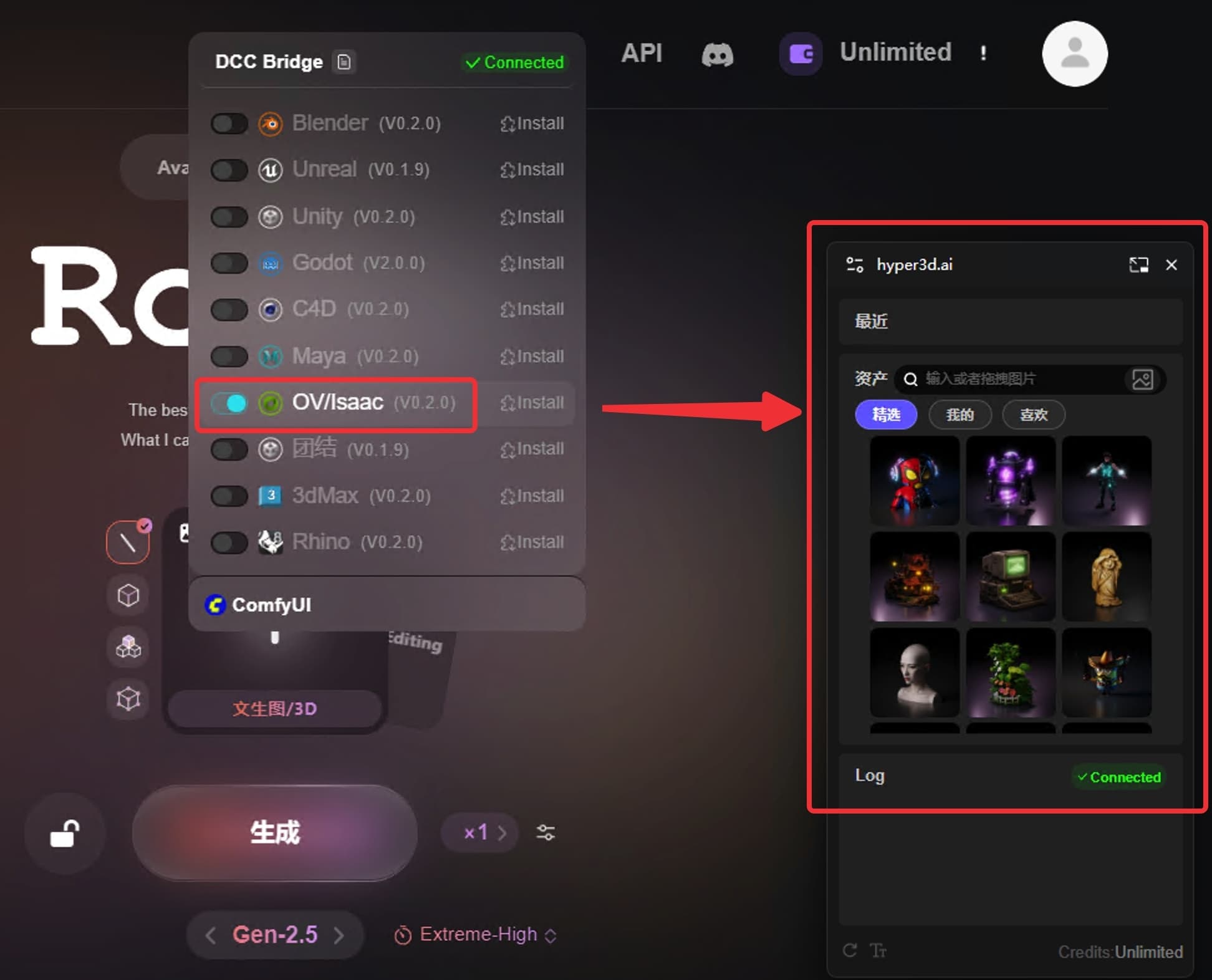

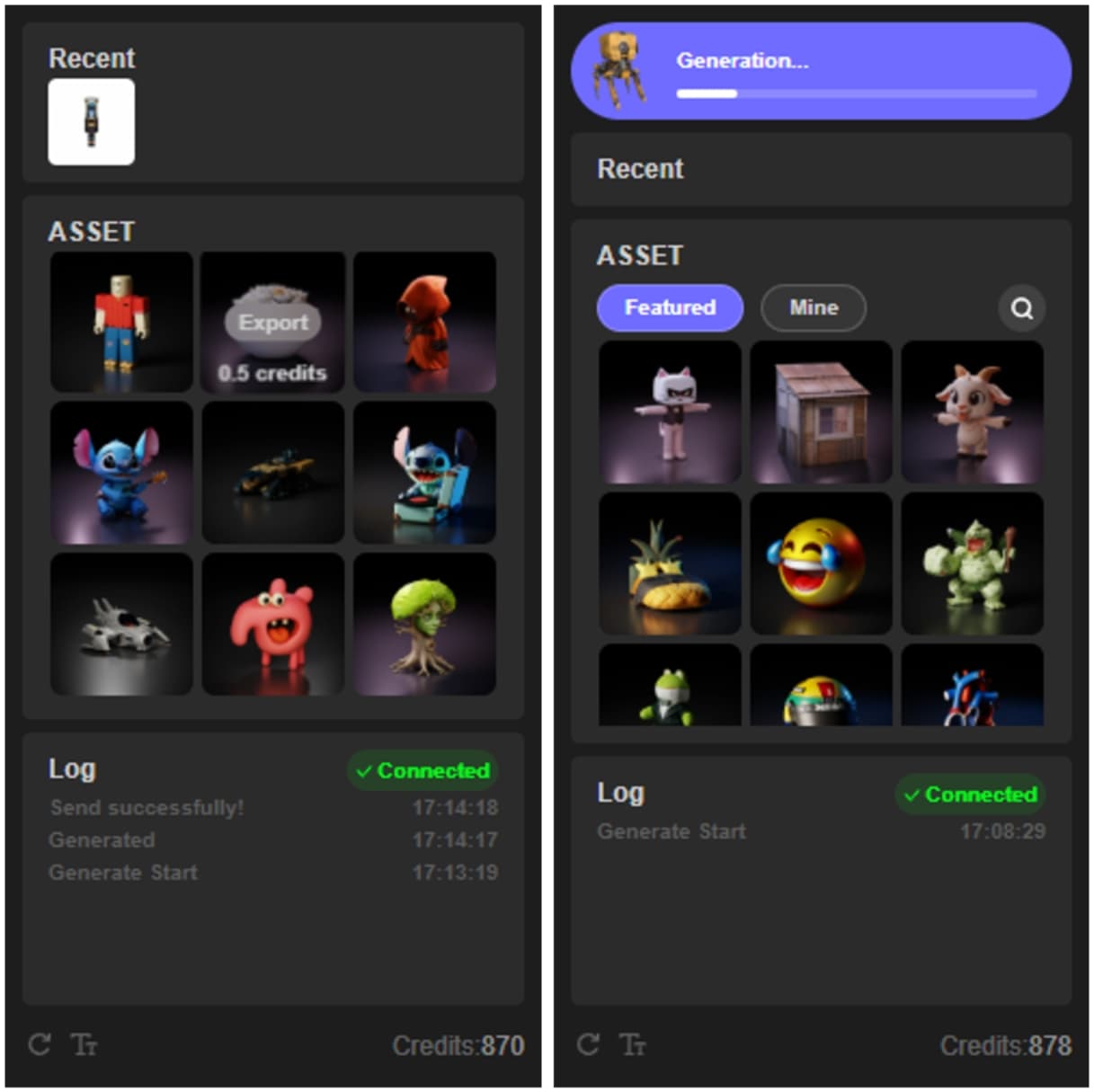

The Rodin web interface opens automatically if it is not already open. Enable its floating window to monitor progress. When generation finishes, the asset is imported into the Omniverse scene.

To import a featured or previously generated asset, hover over it in Rodin and select Export.

Advanced functions

ControlNet

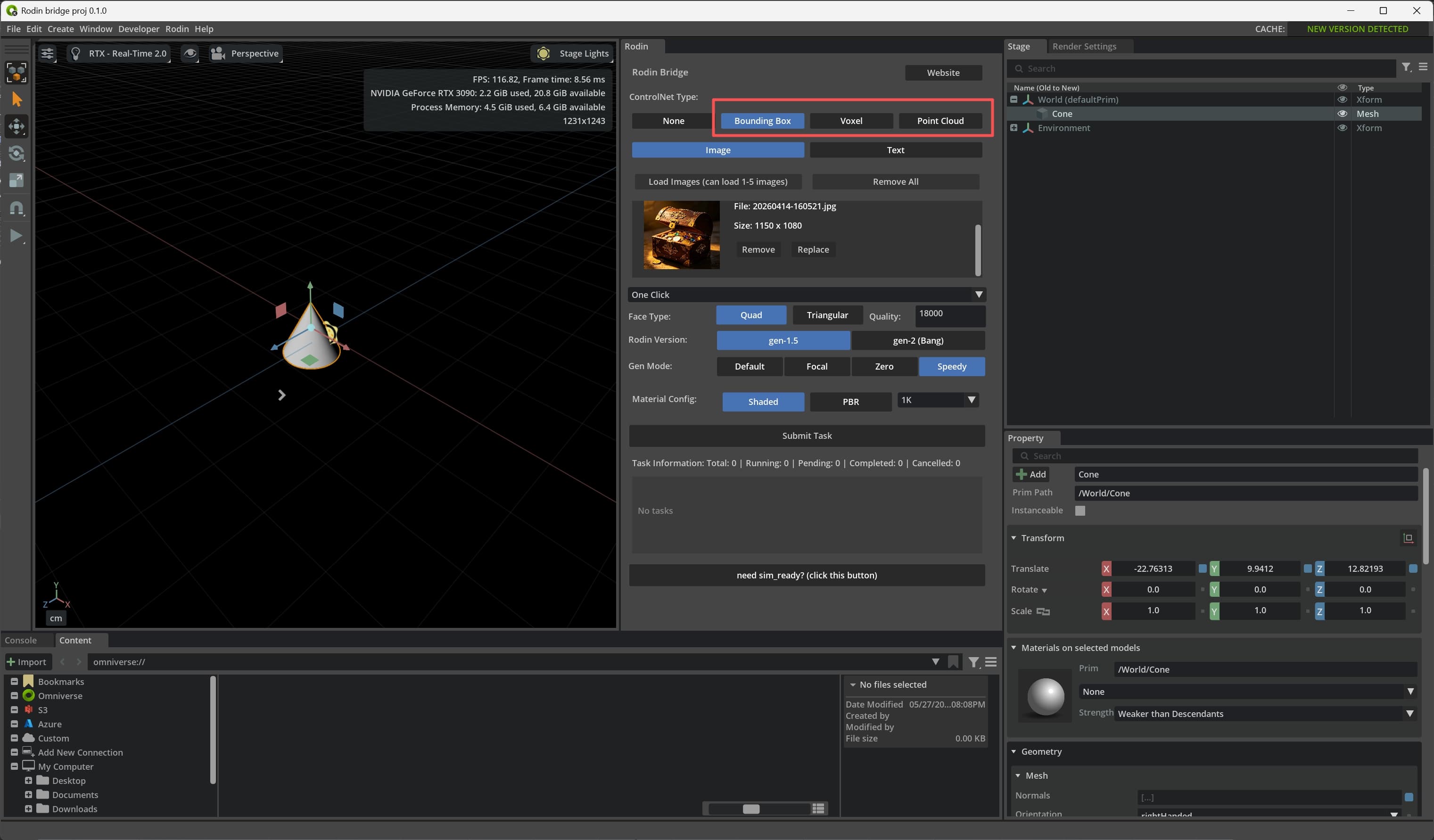

Select an object in the scene, choose a ControlNet mode, and adjust the available settings. The settings correspond to those in the Rodin web interface.

Multi-view mode

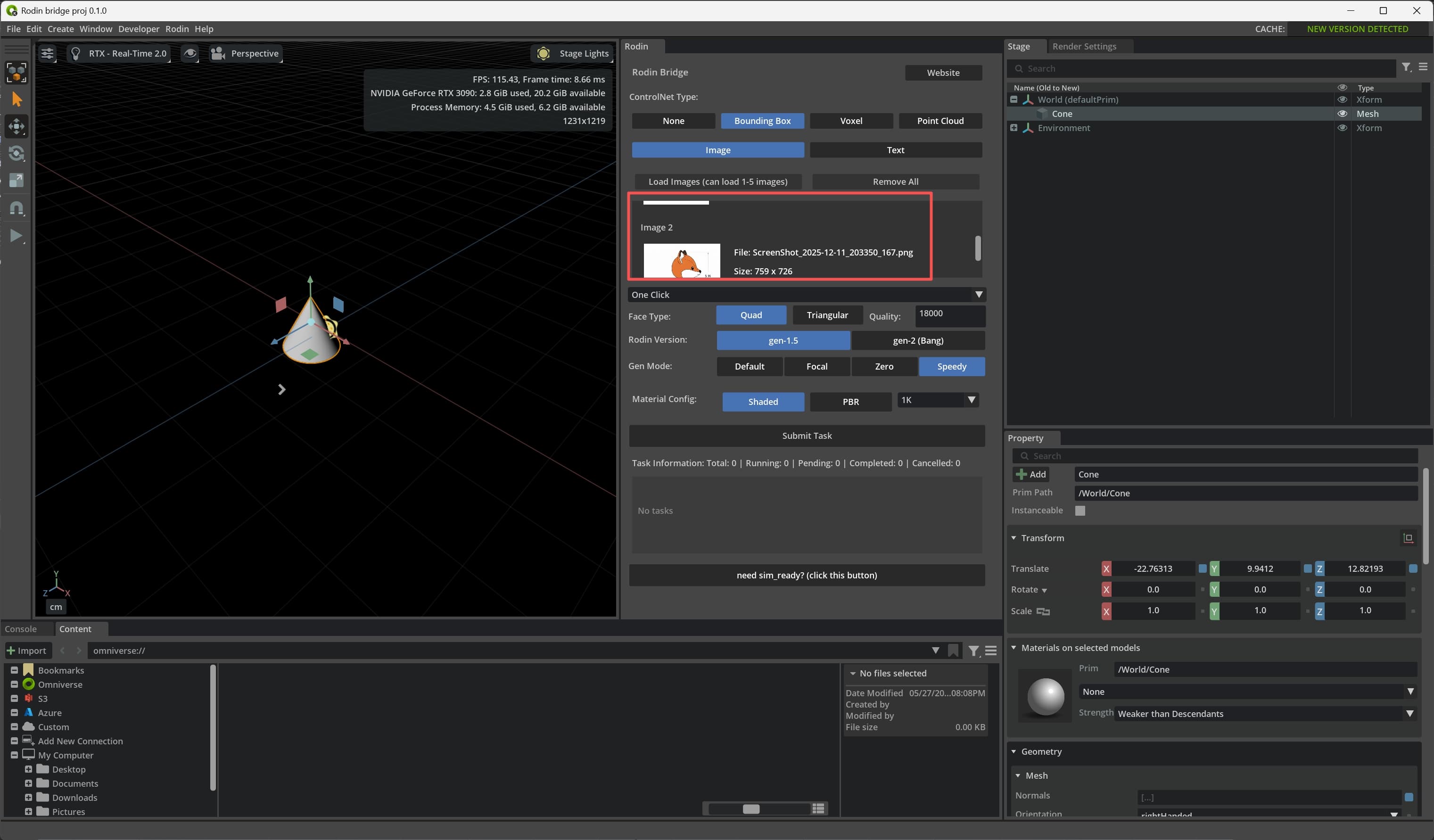

Use Load Image to add multiple input images. Rodin treats them as views of the same object for multi-view generation.

Generation mode

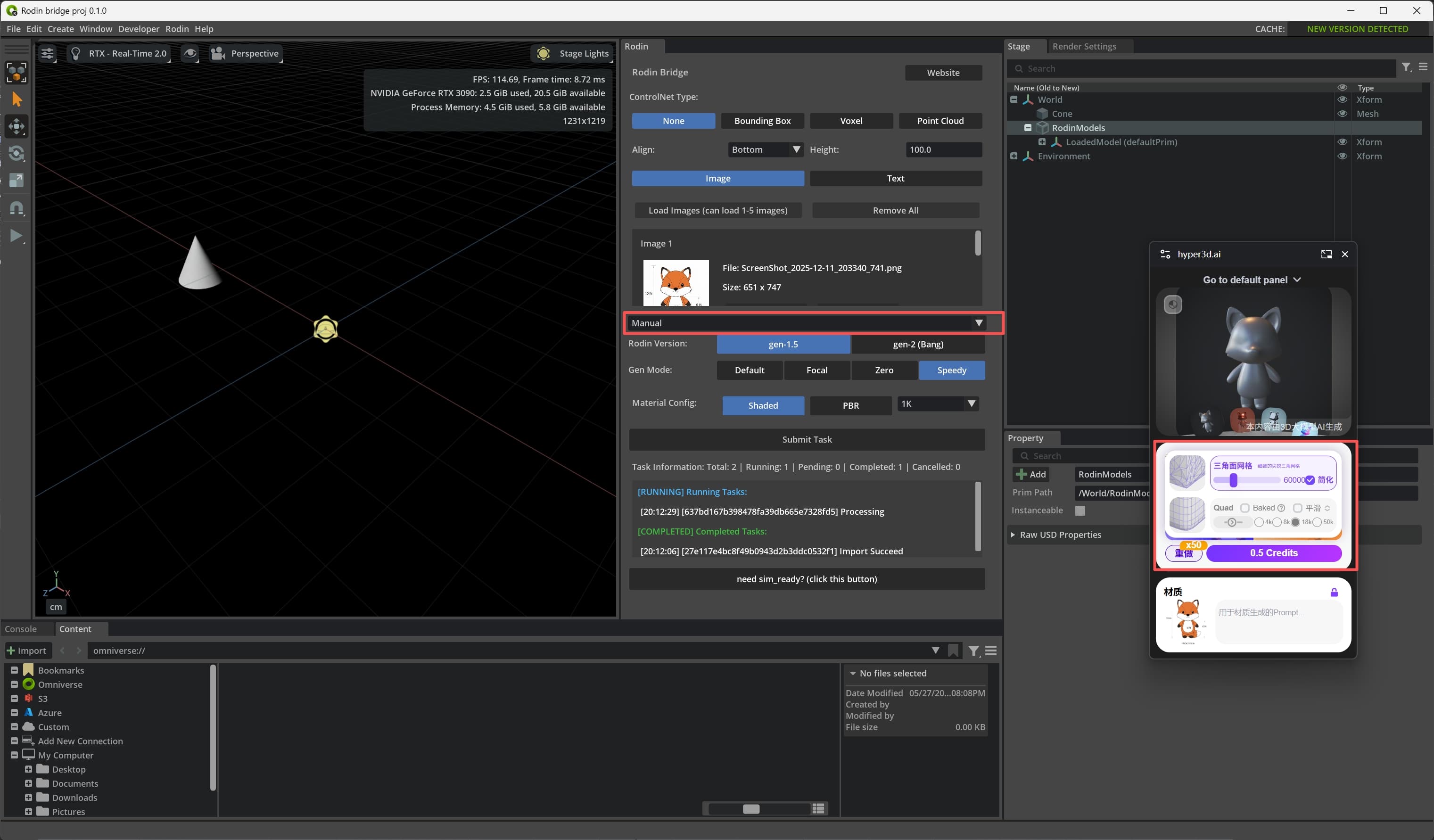

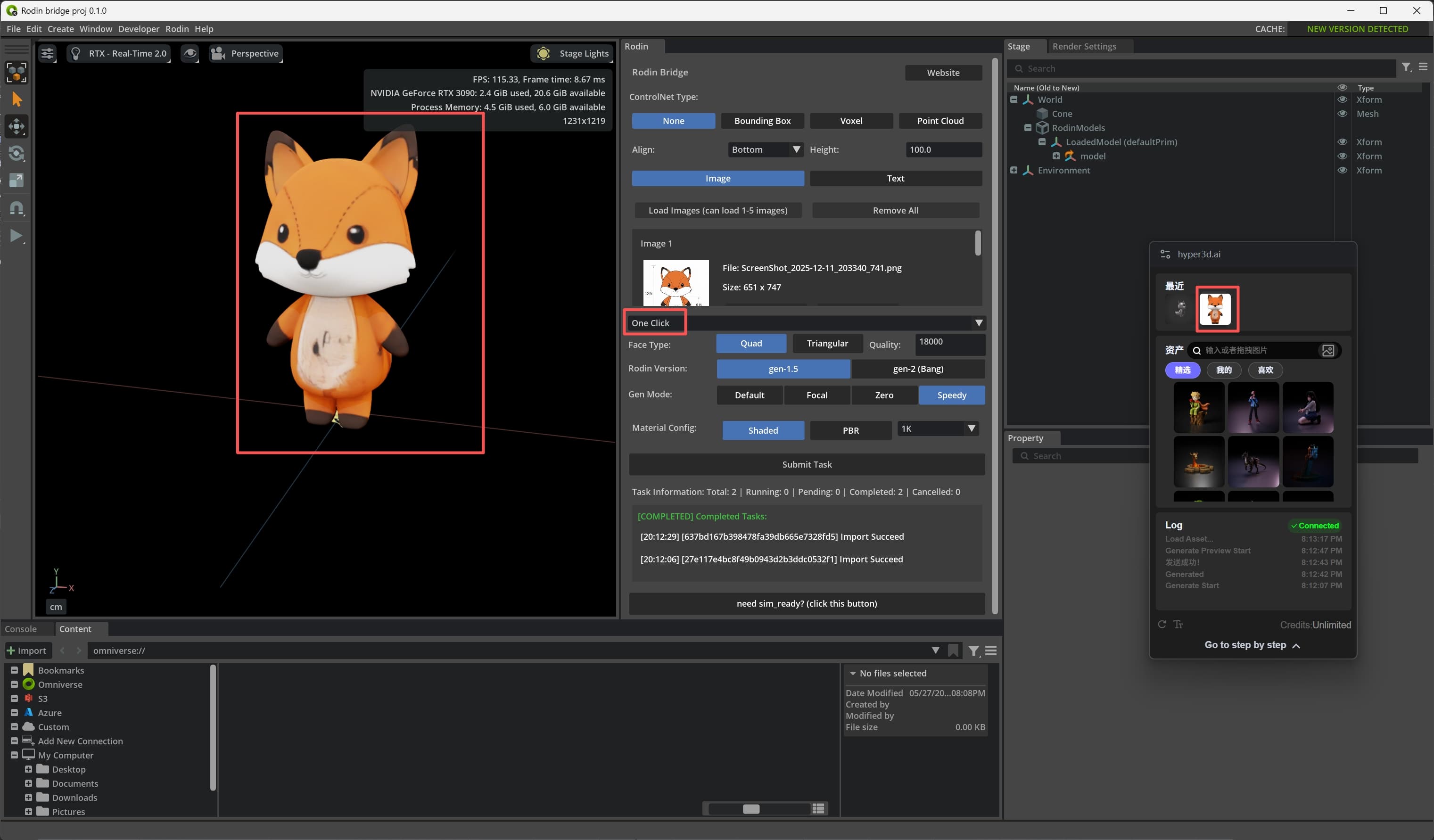

One Click runs the generation flow automatically. Manual requires you to complete each stage in the floating window, following the same flow as the Rodin web interface.
